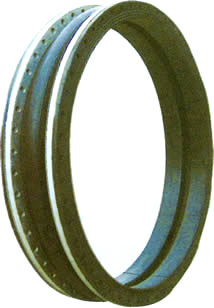

End-sealed rubber connector (reinforced adjustable type)

Author Admin Browse Posted 2011-07-25

Name: end-sealed rubber connector (reinforced adjustable type)
Product Feature:
face full of rubber seal joints, there are two: KXT (JGD)-DM-B (reinforced adjustable type), KXT (JGD)-DM-A ( enhanced). As the end-sealed rubber connector has a good overall performance, it is widely used in chemical industry, construction, water supply, drainage, oil, light and heavy industrial, refrigeration, sanitation, plumbing, fire, electricity and other infrastructure projects.
Sealed rubber connector end of the product takes advantage of the flexibility of rubber, high air tightness, chemical resistance, weatherability and resistance to radiation, etc., using high-strength, hot and cold stability with strong bias composite polyester tire cord fabric , after high-pressure, high temperature vulcanization mold is made. End-sealed rubber connector features: internal high density, can withstand high pressure, elastic deformation effect. End-sealed rubber connector advantages: vibration, noise, light, non-toxic. Sealed rubber connector end use: pump, valve connections, shock larger pipeline, frequent changes of hot and cold pipes. End-sealed rubber connector suitable medium: water, fresh water, hot and cold water, drinking water, sewage, crude oil, fuel oil, lubricating oil, oil, air, gas, vapor and particulate powder.

Sealed rubber connector end technical conditions

Item / Model	(DN50 ~ 300)	(DN350 ~ 800)	(DN900 ~ 3000)	Remarks
Working Pressure MPa	0.6/1.0/1.6/2.0/2.5	0.6/1.0/1.6	0.6/1.0	A, such as media, oil, acid and alkali substance B, with special temperature requirements of c, can also be customized letter to Figure D, order stating
Bursting Pressure MPa	<1.8	<1.5	<1.2
Vacuum KPa	86.7	53.3	49.5
Temperature ℃	-20-- +115 (Special -30 ~ +250)
Medium	Air, compressed air. Water, water, hot water, oil, acid-base

Note: The main parts with JGD-A type

JGD-DM-B (reinforced adjustable type)

JGD-DM-B (reinforced adjustable type) end hermetically sealed flexible rubber joints

JGD-DM-A (Enhanced) fully sealed rubber connector end diameter, length, displacement parameters table
JGD-DM-A (Enhanced) end hermetically sealed flexible rubber joints

Path		Length mm	Axial displacement				Radial displacement		Deflection displacement
Path			Type A		Type B		Type A	Type B	Type A	Type B
mm	Inch		Elongation	Compression	Elongation	Compression	Type A	Type B	Type A	Type B
32	1.25 "	90	6	10	-	-	9	-	± 7.5 °	-
40	1.5 "	95	7	10	-	-	9	-	± 7.5 °	-
50	2 "	105	7	10	-	-	10	-	± 7.5 °	-
65	2.5 "	115	7	13	-	-	1l	-	± 7.5 °	-
80	3 "	135	8	15	-	-	12	-	± 7.5 °	-
100	4 "	150	10	19	-	-	13	-	± 7.5 °	-
125	5 "	165	12	19	-	-	13	-	± 7.5 °	-
150	6 "	180	12	20	-	-	14	-	± 7.5 °	-
200	8 "	210	16	25	30	35	22	25	± 7.5 °	± 10 °
250	10 "	230	16	25	30	40	22	25	± 7.5 °	± 12 °
300	12 "	245	16	25	30	40	22	25	± 7.5 °	± 12 °
350	14 "	255	16	25	35	45	22	30	± 7.5 °	± 12 °
400	16 "	255	16	25	35	45	22	30	± 7.5 °	± 12 °
450	18 "	255	16	25	36	47	22	30	± 7.5 °	± 12 °
500	20 "	255	16	25	36	48	22	30	± 7.5 °	± 12 °
600	24 "	260	16	25	40	50	22	33	± 7.5 °	± 12 °
700	28 "	260	16	25	40	55	22	33	± 7.5 °	± 12 °
750	30 "	260	-	-	40	55	-	33	± 7.5 °	± 12 °
800	32 "	260	16	25	45	55	22	35	± 7.5 °	± 12 °
900	36 "	260	16	25	45	55	22	35	± 7.5 °	± 12 °
1000	40 "	260	16	-	45	60	22	35	± 7.5 °	± 12 °
1100	44 "	300	-	-	45	60	-	35	± 7.5 °	± 12 °
1200	48 "	300	16	25	50	60	24	38	± 7.5 °	± 10 °
1300	52 "	300	-	-	50	60	-	38	± 7.5 °	± lO.
1400	56 "	350	18	25	50	70	24	40	± 7.5 °	± 10 °
1500	60 "	350	-	-	60	70	-	40	± 7.5 °	± 10 °
1600	64 "	350	18	25	60	70	24	46	± 7.5 °	± 10 °
1800	72 "	400	18	25	60	75	24	48	± 7.5 °	± 10 °
2000	80 "	450	18	25	70	75	25	50	± 7.5 °	± 10 °
2200	88 "	500	18	25	70	80	25	60	± 7.5 °	± l ().
2400	96 "	500	18	25	80	80	25	60	± 7.5 °	± lO.
-	-	-	20	28	85	80	-	60	-	± 10 °
-	-	-	25	30	-	-	-	-	-	-
-	-	-	25	30	-	-	-	-	-	-
